Controller for flexible mobile adjustment operations with telescopic columns/electric jacks
MultiControl II duo accu / DC
New: Battery operation for lifting columns and electric cylinders
We are expanding our proven MultiControl II range of controllers with a battery-powered model in a compact cordless version. What makes it special: The new MultiControl II duo accu has a special battery adapter to accommodate standard batteries of well-known brands. This means that users can use their own battery systems to recharge the controller under optimum conditions.

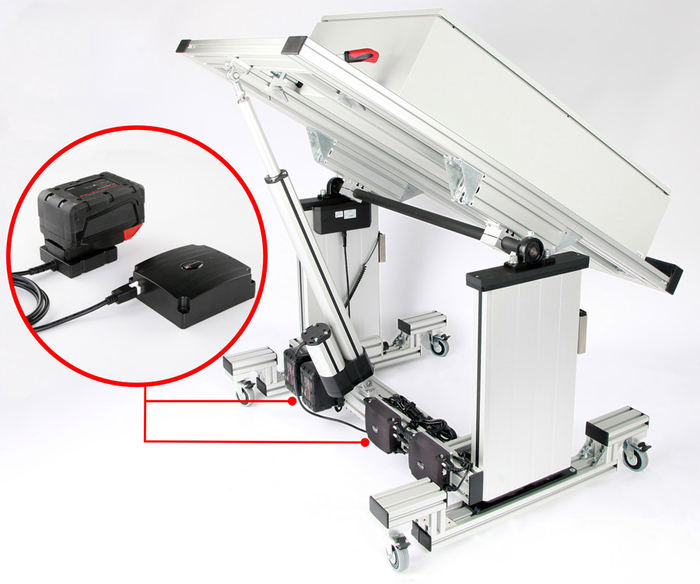

The MultiControl II duo accu is ideal for mobile systems in intralogistics and assembly stations. Height-adjustable and/or swiveling workshop trolleys, lifting devices and work tables can be easily moved from one production station to another, ergonomically adapted to the height of the worker and placed in the optimum working position. Cable-limited movement radii and the associated tripping hazards are a thing of the past.
MultiControl II duo accu product benefits
- Ready for use – No fixed pause times thanks to dynamic duty cycle calculation
- Reliable – Duty cycle, overcurrent and temperature monitoring for overload protection as standard
- Straightforward – Intuitive operation using hand switch with graphics-capable display
- Flexible – Rechargeable battery solution for location-independent ergonomics
- High-performance – Up to 150 double strokes with a single battery charge
- Efficient – Standby times of up to 15 days
- Compatible – Fully compatible with the BLOCAN product portfolio
- Upgradable – Synchronous movement of up to 16 drives
- Adaptable – We implement special applications for you with Premium Customized
The MultiControl II duo DC can be easily and quickly integrated into a control cabinet with a top hat rail adapter
MultiControl II duo DC – control cabinet integration or movement applications in automotive engineering solved easily
Thanks to the direct 24 V power supply and its small dimensions, the MultiControl II duo DC is ideally suitable for applications in industry or automotive engineering. Both the actual hand switches and an I/O interface can be connected as the operating interface. The I/O interface provides 16 digital inputs and outputs for control. Status messages, memory positions and encoder emulation can be implemented using the standard functions in just a few simple steps. That way, a broad range of requirements can be catered for with just the standard components, in particular in combination with the lifting columns and electric cylinders.
The MultiControl control can be easily and quickly integrated into a control cabinet via an optionally available top hat rail adapter.
